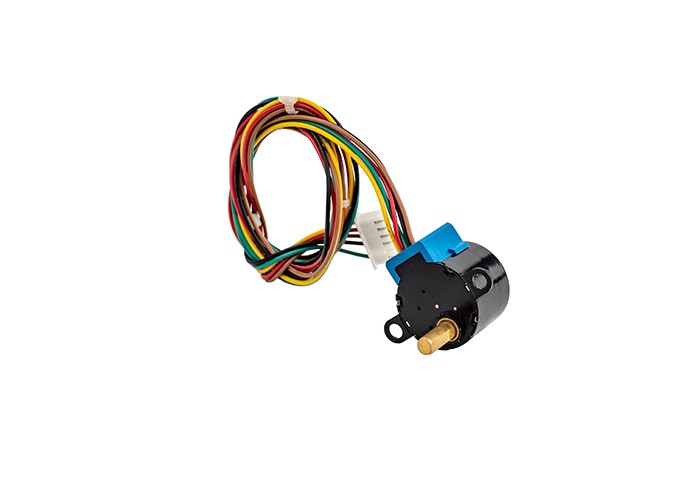

PM 35永磁直流减速步进电机的技术参数General Specification
项目Item | 规格Specifications |
步距角精度Step Angle Accuracy | ± 10% (full step, no load) |
电阻精度Resistance Accuracy | ± 10% |
电感精度Inductance Accuracy | ± 20% |
温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
环境温度Ambient Temperature | - 10°C ~ +50°C |
绝缘等级Insulation Class | B |
介电强度Dielectric Strength | 500 VAC for one minute |
PM 35永磁直流减速步进电机的技术规格 Technique Specifications
型号 Model No. | 电压 Rated Voltage | Mo.of Phase | 电阻 Resistance | Step Angle | 减速比Ratio | 起动频率 Starting Frequency | 运行力矩 Pulling Torque（at 100pps） | 定位力矩 Detent Torque |
V | W | deg | PPS | g-cm | g-cm | |||
35BYS49J04 | 12 | 2 | 38 | 7.5/4.16 | 1：4.167 | ≥350 | ≥200 | ≤150 |
35BYS49J06 | 12 | 4 | 30 | 7.5/4.16 | 1：4.167 | ≥400 | ≥250 | ≤150 |

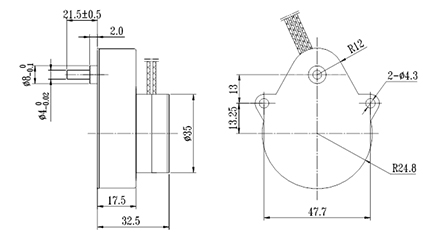

PM 35永磁直流减速步进电机的机械尺寸Dimensions(Unit=mm)

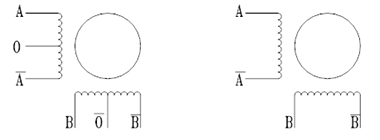

PM 35永磁直流减速步进电机的绕线图Wiring Diagram
